Circuit Design and PCB Prototyping Solutions


Tina Design Suite Circuit Design and Simulation Software with PCB Design


Tina V12 - Offline Circuit Simulation with TINA

TINA Design Suite is a powerful yet affordable circuit simulator and PCB design software package for analyzing, designing, and real time testing of analog, digital, IBIS, HDL, MCU, and mixed electronic circuits and their PCB layouts. You can also analyze SMPS, RF, communication and optoelectronic circuits; generate and debug MCU code using the integrated flowchart tool; and test microcontroller applications in a mixed circuit environment. You can analyze your circuit through more than 20 different analysis modes or with 10 high tech virtual instruments.

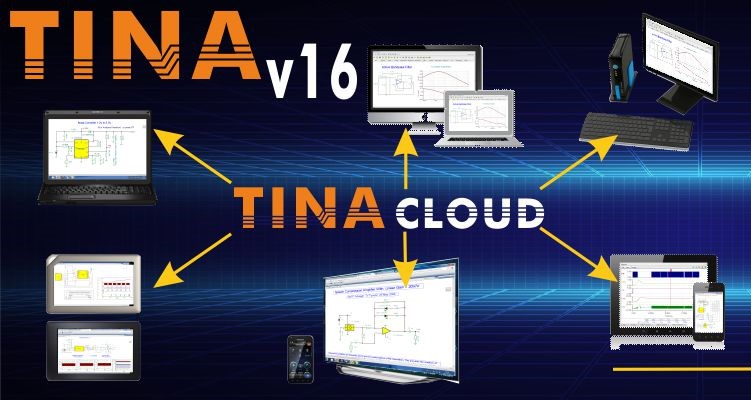

Tina Cloud - Online Circuit Simulation with TINACloud

With the TINACloud on-line circuit simulator, in addition to the installable versions, now you can also edit and run your schematic designs and their PCB layouts online on PCs, Macs, thin clients, tablets, smart phones, smart TVs and e-book readers without any installation. You can use TINACloud in the office, classroom, at home and while travelling, anywhere in the world that has internet access.




PCB Prototyping Range


Time is key. That's why we bring to you a product so simple that with a single key, you can make your prototypes only in a matter of minutes. With Scientech PCB prototyping system, we guarantee the secrecy of your designs. Our compact table-top, highly reliable machine delivers high precision PCBs in-house at an affordable cost.

PCB Prototype Machine (Scientech EP-42)

PCB Prototype Machine

This is an environment friendly PCB Machine for each stage of PCB making and fabrication process, from design verification to structuring and board assembly. Users can produce fully functioning boards quickly and easily by drilling, engraving and routing. Auto tool change allows up to 12 tools that are automatically changed as required during production. This reduces set-up times and permits unattended production.

Benefits

  • Engrave Tool for engraving trace and pad
  • End-mill Tool for copper removing
  • Drill bit for drilling holes
  • Router Bit for PCB outline cutting
  • No pollution / environmental friendly
  • Working area : 320mm X 230mm


PCB Prototyping System (EP-2006 Series)

PCB Prototyping System

EP 2006 series PCB Prototype Machine will allow you to make your own PCB Prototype in the most simple, quick and precise way. Just input your Gerber file, and your PCB can be made within minutes.

Benefits

  • High accuracy and easy operation
  • Automatic tool length detect function
  • Surface detect and real time working depth compensation function
  • Working depth setup by software control
  • Motorized Z - axis with software control drill speed
  • 5 Phase stepping motor with precisely ball screw and liner guide


Conductive ink technology based PCB Printer (V-One)

Conductive ink technology based PCB Printer

Scientech brings a compact and easy to use printer to make PCBs. Simply import your Gerber file into its software, press print, and the V-One printer will bring your board to life. Use the solder paste dispensing and reflow features to mount components onto your printed board or mount components on a pre-fabricated board with ease.

Benefits

Build your hardware easily and faster

Build your hardware easily and faster

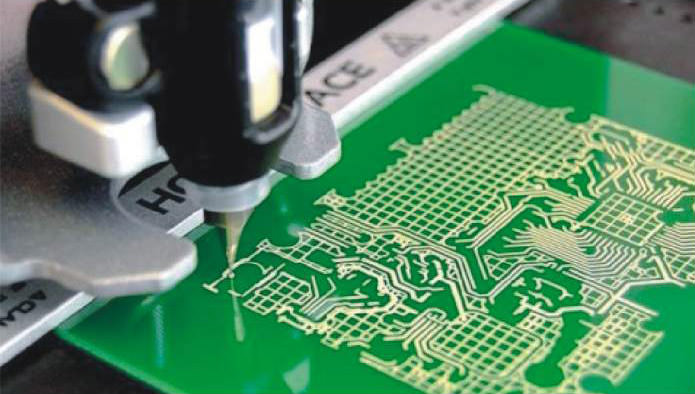

Make PCBs on any surface

Make PCBs on any surface

New possibilities for various applications

New possibilities for various applications



PCB Prototype Machine (Nvis 72)

PCB Prototype Machine

Nvis 72 PCB Prototype Machine provides several features which can make your life easier. With this new electro-mechanical utility, you can escape cumbersome task of traditional PCB fabrication which involves time taking etching and drilling processes. Get rid of dealing with chemicals which often spoil your hands and are harmful to you and environment. Provided with the USB connectivity, Nvis 72 can print your desired circuit on the PCB within minutes. Accompanied design software provides simple and elegant interface which is user-friendly, and can even be operated by novice Engineers and Students.


Nvis 72 Feature


Compact Proto Design Maker (Nvis 70)

Nvis 70 Proto Design Maker provides several features which can make your life easier, you can escape cumbersome task of traditional PCB designing which involves time taking etching and drilling processes. Get rid of dealing with chemicals which often spoil your hands and are harmful to you and our environment. Provided with USB connectivity, Nvis 70 can make your desired circuits on the PCB within minutes.

Sample Results

Enlarged View
Softwood Engraved
