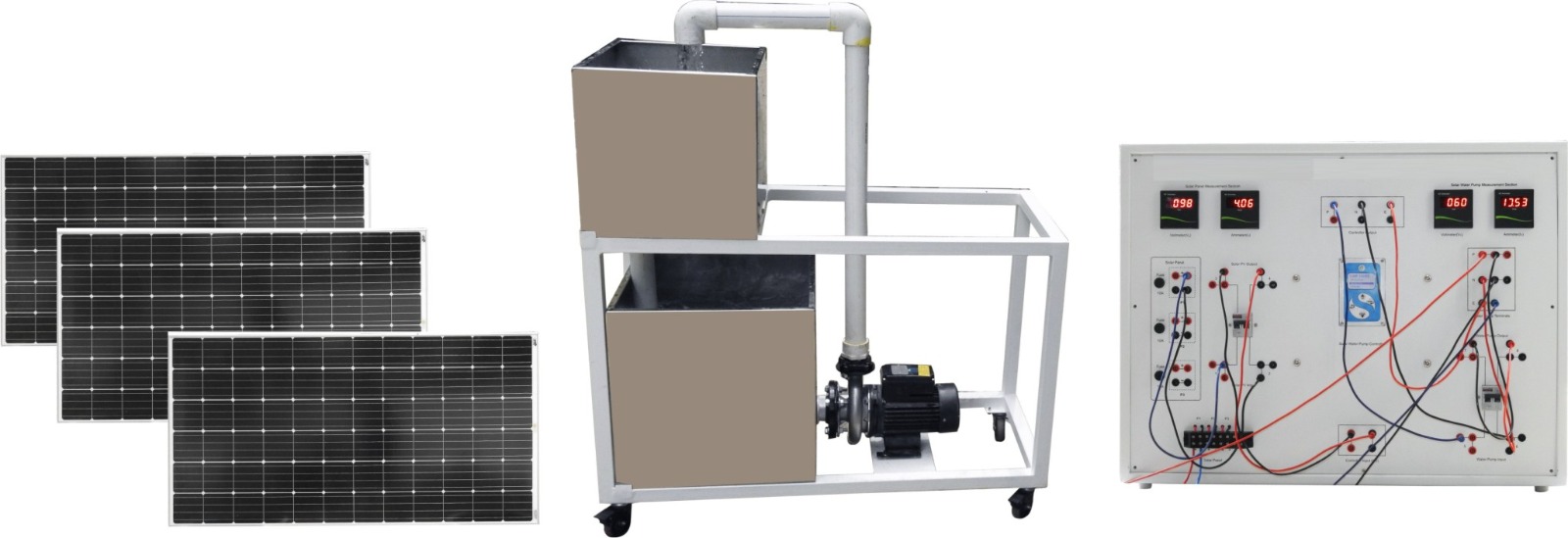

The Scientech PV155 solar DC pump is designed for solar-powered water pumping applications. This DC solar pump uses solar energy to operate a water pumping system and demonstrates the working of a DC solar water pump setup. It is suitable for understanding how a solar DC water pump system works with a solar panel, MPPT solar controller, water pump, meters, and related components.
Features and Specifications
- The system includes listed components with its technical descriptions as given below. The system demonstrates the operation of a solar DC pump using solar power for water pumping.
- Solar panel 1000Wp-capacity
Solar Panel
The solar panel provides the required solar power for operating the DC solar pump and other components in the system.
Water Pump
- Pump type: Surface Pump
• Operation: Solar
• Capacity of Pump:1HP.
The surface pump is used as the solar DC water pump in the system. It operates using solar power supplied through the solar panel and controller.
Mechanical Structure included
- Source Tank: 1No.
• OverheadTank:1No.
• Material of Tank: SS grade 304
The mechanical structure supports the working demonstration of the solar DC water pump system by providing source and overhead water tanks.
Solar controller
- Technology: MPPT
• PowerRating:1HP.
The MPPT solar controller manages the solar power supplied to the solar DC pump, helping demonstrate the operation of a complete DC solar water pump system.
Digital Meters
- DCvoltmeter:300V (1 Nos.)
• DC Ammeter: 20A (1 Nos.)
The digital meters allow users to observe the electrical parameters of the solar DC pump system during operation.
MCB: 1No.
- Terminals–BS10 type for safety, BS 10 terminals and specially designed patch cords are provided to protect from danger
This complete setup helps demonstrate the working principles and components of a DC solar pump, DC solar water pump, and solar DC water pump system for educational and practical applications.
Key Components of a Solar DC Water Pump System
A typical solar DC water pump system consists of several components that work together to provide efficient solar-powered water pumping. The major components include:
- Solar Panel: Converts sunlight into electrical energy to power the system.
- Solar DC Pump: Uses DC power generated from the solar panel to pump water.
- MPPT Solar Controller: Regulates and optimizes the power supplied to the solar DC pump.
- Source Water Tank: Stores the water that needs to be pumped.
- Overhead Water Tank: Receives and stores water pumped from the source tank.
- Digital DC Voltmeter: Measures the DC voltage generated by the solar system.
- Digital DC Ammeter: Measures the current flowing through the DC solar water pump system.
- MCB: Provides electrical protection to the system.
- Mechanical Support Structure: Provides stable support for the solar panel and other system components.
- Safety Terminals and Patch Cords: Provide secure electrical connections and help improve operational safety.
Together, these components help students and learners understand how a solar DC pump operates and how solar energy can be used for practical water-pumping applications.
Why Choose Scientech PV155 Solar DC Pump?
Scientech PV155 is a practical DC solar water pump training system designed to help students understand solar-powered water pumping through hands-on learning. It combines a solar panel, solar DC pump, MPPT controller, water tanks, digital meters, and safety components in one setup.
- Practical Solar Pump Training: Provides hands-on experience with a working solar DC pump system.
- Complete System Setup: Includes the major components required to study a DC solar water pump.
- MPPT Technology: Uses an MPPT solar controller to demonstrate efficient solar power management.
- Real-Time Measurements: Digital DC voltmeter and ammeter help students monitor important electrical parameters.
- Hands-On Learning: Helps students understand the connection between solar energy generation and water pumping.
- 1 HP Surface Pump: Includes a 1 HP surface pump for practical demonstration of solar-powered pumping.
- Safety Features: Includes an MCB, BS10 terminals, and specially designed patch cords for safer operation.
- Educational Applications: Suitable for engineering colleges, polytechnic institutes, technical training centres, and renewable energy laboratories.
- Integrated Water Storage: Source and overhead tanks allow learners to observe the complete water-pumping process.
- Renewable Energy Learning: Helps students understand the practical application of solar energy through a solar DC water pump system.
Frequently Asked Questions
What is Scientech PV155 Solar DC Pump?
Scientech PV155 is a training system that demonstrates solar-powered water pumping using a DC solar pump, solar panel, MPPT controller, water tanks, meters, and safety components.
What type of pump is used in the Scientech PV155?
The Scientech PV155 uses a 1 HP surface pump designed for solar operation, making it suitable for demonstrating the working of a solar DC water pump system.
What is the role of the MPPT controller?
The MPPT controller manages power from the solar panel and supplies it to the solar DC pump, helping students understand power control in a DC solar water pump system.
What components are included in the Scientech PV155?
It includes a 1000 Wp solar panel, 1 HP surface pump, MPPT controller, water tanks, digital meters, MCB, structure, safety terminals, and components for a solar DC pump setup.
Where can the Scientech PV155 be used?
The DC solar water pump training system can be used in engineering colleges, polytechnic institutes, technical training centres, and renewable energy laboratories for practical training.
