Array junction box

The Array Junction Box Solar solution is designed for safe and organized connection of solar panel strings in photovoltaic systems. This Solar Array Junction Box combines DC inputs and provides protection for reliable solar power transmission.

An array junction box is a protective electrical enclosure used in solar PV systems to combine multiple DC solar string inputs into a single output. A solar array junction box can also include protection components such as DC fuses, DC MCBs, and surge protection devices to improve the safety and reliability of the solar power system.

Features and Specifications

• For connecting 1 kWatt solar panel with DC fuse, DC MCB, and surge suppressor protection.
• This Solar Array Junction Box is engineered to efficiently combine DC solar string inputs into one unified output,
reducing cable clutter and improving system organization. It ensures smooth and reliable DC power transfer from
solar panels to the inverter.
• Advanced Surge Protection SPD : Integrated with a high-performance Surge Protection Device, this AJB provides
robust defense against lightning surges, transient over-voltages, and electrical disturbances.

Why Choose Scientech PV131 Array Junction Box?

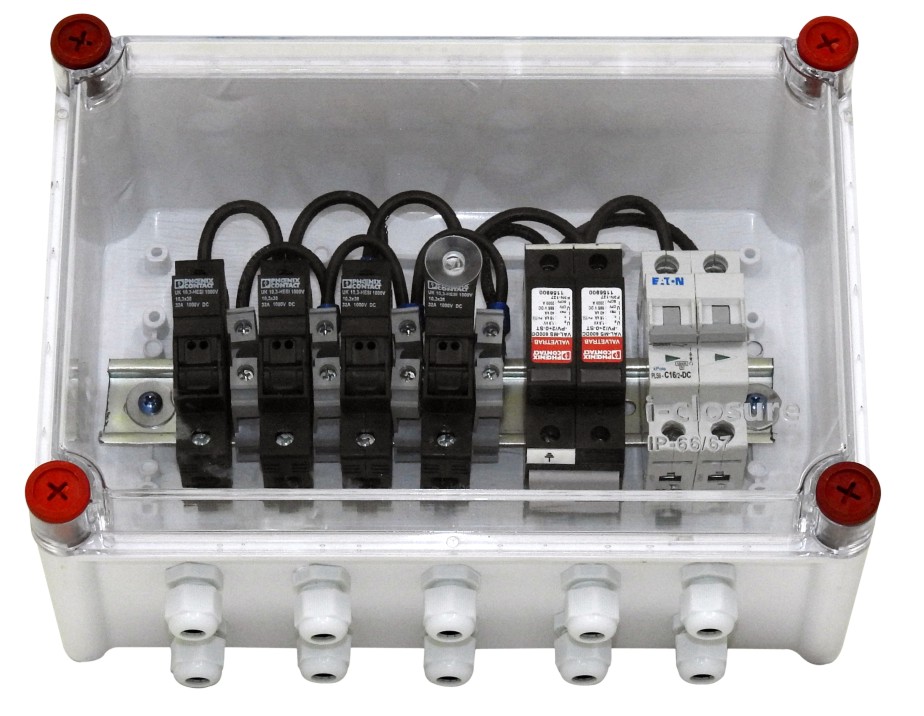

The Scientech PV131 Array Junction Box is designed to provide an organized and protected connection point for solar PV systems. It combines DC solar string inputs and incorporates essential protection components to support safe and reliable power transfer.

• Efficient DC String Combination: The solar array junction box combines DC solar string inputs into a unified output, helping simplify the connection between solar panels and the inverter.
• Integrated Electrical Protection: The array junction box solar solution supports protection through a DC fuse, DC MCB, and surge suppressor, helping safeguard the connected solar circuit.
• Advanced Surge Protection: An integrated Surge Protection Device (SPD) helps provide protection against lightning surges, transient over-voltages, and other electrical disturbances.
• Improved Cable Organization: By bringing solar string connections together, the array junction box helps reduce cable clutter and keeps the PV system more organized.
• Reliable Power Transfer: The PV131 is designed to support smooth and reliable DC power transfer from solar panels toward the inverter.
• Suitable for Solar PV Applications: Designed for connecting a 1 kWatt solar panel, making it suitable for relevant solar photovoltaic system applications.
• Simplified Solar System Connections: A centralized connection point makes it easier to manage DC inputs and associated protection components within the solar installation.
• Enhanced System Organization: The solar array junction box provides a structured arrangement for DC connections, helping create a cleaner and more manageable PV setup.

Frequently Asked Questions

What Is an Array Junction Box?

An array junction box combines DC solar string inputs into one output and helps organize connections between solar panels and the inverter.

What Is a Solar Array Junction Box Used For?

A solar array junction box combines solar panel DC inputs and supports protection using DC fuses, DC MCBs, and surge protection devices.

What Protection Does the Scientech PV131 Provide?

The Scientech PV131 includes a DC fuse, DC MCB, and Surge Protection Device (SPD) to help protect against transient over-voltages and electrical disturbances.

Can the Array Junction Box Be Used With a 1 kW Solar Panel?

Yes. The Scientech PV131 array junction box solar solution is designed for connecting a 1 kWatt solar panel with the specified DC protection components.

How Does a Solar Array Junction Box Improve a PV System?

A solar array junction box helps reduce cable clutter, organize DC connections, combine string inputs, and support reliable DC power transfer to the inverter.
