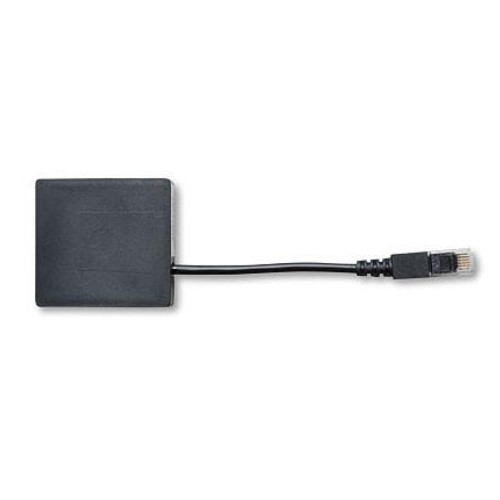

Provides average barometric pressure for each data logging interval over the range of 660 mb to 1070 mb (19.47 to 31.55 inHg). The operating temperature range for this sensor is -40° to 70°C (-40° to 158°F); sensor survival is supported from -20° to +70°C (-4° to +158°F). This specialized smart sensor must be used inside a data logger enclosure to assure protection from direct exposure to the weather.
A barometric pressure sensor measures atmospheric pressure and is commonly used for environmental monitoring and weather-related applications. The S-BPA-CM10 provides reliable pressure measurements for data logging applications. As a specialized digital barometric pressure sensor, it can be used with compatible H22 data loggers for continuous pressure monitoring.
Features
- Specialized smart sensor
- Range of 660 mb to 1070 mb (19.47 to 31.55 inHg)
- Compatible with H22 data loggers
- Reliable barometric pressure sensor module for environmental monitoring
- Designed for accurate atmospheric pressure data logging
- Suitable for applications requiring a digital barometric pressure sensor
Specifications
Measurement parameters: average over logging interval, user-defined sampling interval from 1 second
Measurement range: 660 mb to 1070 mb (19.47 to 31.55 in. Hg)
Operating temperature range: -40° to 70°C (-40° to 158°F)
Accuracy: ±3.0 mbar (0.088 in. Hg) over full pressure range at 25°C (77°F); maximum error of ±5.0 mbar (0.148 in. Hg) over -40° to 70°C (-40°F to 158°F)
Resolution: 0.1 mbar (0.003 in. Hg)
Drift: Typical ±0.6 mb (0.018 in. Hg) per year, maximum <2.5 mb (0.074 in. Hg) per six months
Dimensions: 4.5 cm x 4.8 cm x 1.6 cm (1 3/4″ x 1 7/8″ x 5/8″)
Approximate weight: 30 g (1 oz)
Cable length: 10 cm (4″)
Additional Relevant Keywords
- atmospheric pressure sensor
- atmospheric pressure sensor module
- barometric pressure measurement
- digital pressure sensor
- barometric pressure monitoring
- atmospheric pressure monitoring sensor
- pressure data logger
- barometric pressure measurement sensor
- environmental pressure sensor
- barometric pressure monitoring system
Why Choose the HWS Barometric Pressure Sensor?
The HWS Barometric Pressure Sensor S-BPA-CM10 is a specialized smart sensor designed for accurate atmospheric pressure measurement and environmental monitoring. This digital barometric pressure sensor offers reliable data logging, a wide measurement range, and compatibility with H22 data loggers. Its compact design and high resolution make it suitable for long-term pressure monitoring applications.
- Accurate Pressure Measurement: Measures barometric pressure from 660 mb to 1070 mb with reliable accuracy for environmental monitoring.
- Wide Temperature Range: Operates from -40°C to 70°C, making it suitable for different environmental conditions.
- High-Resolution Readings: Provides 0.1 mbar resolution for detailed and precise pressure monitoring.
- Reliable Digital Sensor: Works as a digital barometric pressure sensor for consistent atmospheric pressure data collection.
- H22 Data Logger Compatible: Designed specifically for use with H22 data loggers, allowing easy integration into data logging systems.
- Long-Term Stability: Offers low typical drift of ±0.6 mb per year, supporting dependable long-term measurements.
- Compact and Lightweight: Its compact 4.5 cm × 4.8 cm × 1.6 cm design and approximately 30 g weight make installation convenient.
- Protected Installation: The recommended barometric pressure sensor location is inside the data logger enclosure to protect the sensor from direct weather exposure.
- Suitable for Environmental Monitoring: Ideal for applications requiring continuous barometric pressure measurement, atmospheric pressure monitoring, and environmental data logging.
Frequently Asked Questions
1. What is a barometric pressure sensor?
A barometric pressure sensor is a device that measures atmospheric pressure. The HWS Barometric Pressure Sensor S-BPA-CM10 measures pressure from 660 mb to 1070 mb for environmental monitoring and data logging applications.
2. What is the measurement range of the S-BPA-CM10?
The barometric pressure sensor has a measurement range of 660 mb to 1070 mb (19.47 to 31.55 inHg) and provides a resolution of 0.1 mbar.
3. Is the S-BPA-CM10 a digital barometric pressure sensor?
Yes. The S-BPA-CM10 is a specialized smart digital barometric pressure sensor designed to provide average barometric pressure readings for each data logging interval.
4. Where should the barometric pressure sensor be installed?
The recommended barometric pressure sensor location is inside a compatible data logger enclosure. This helps protect the sensor from direct exposure to weather conditions.
5. Which data logger is compatible with this barometric pressure sensor?
The S-BPA-CM10 barometric pressure sensor module is compatible with H22 data loggers and is designed for environmental pressure monitoring and data logging applications.
