Analog to Digital Converter

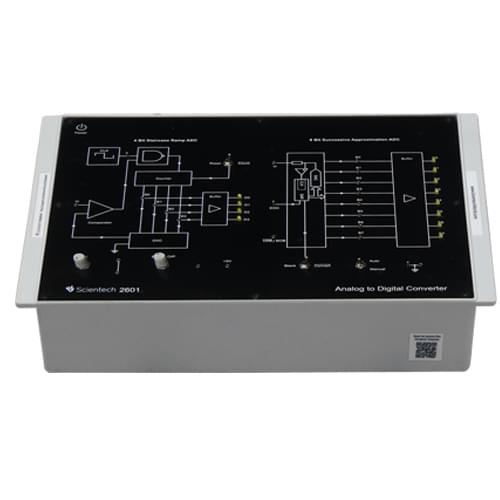

Scientech 2601 Analog to Digital Converter composes of the devices transforming an analog signal into
discrete signals. It converts continuously varying signals with time into discrete signals.

An analog to digital converter is an electronic circuit that converts a continuously varying analog signal into a digital representation. The analog-to-digital converter concept is widely used in electronics, instrumentation, data acquisition, and embedded systems.

The Scientech 2601 provides a practical platform for understanding the working principles of an analog to digital converter circuit and studying how analog inputs are converted into discrete digital signals.

The Analog to Digital converter Scientech 2601 TechBook demonstrates two techniques :

• 4 bit staircase ramp ADC
• 8 bit successive approximation ADC

Features

• 4 bit discrete & 8 bit monolithic converters
• Unipolar & Bipolar DC Voltages
• 0/P status displayed by LED
• Functional block indicated on board mimic
• Built in DC Power Supply

The Scientech 2601 is focused on analog-to-digital conversion. For broader learning of conversion systems, students can also study the principles behind a digital to analog converter, digital-to-analog converter, and digital to analog converter circuit.

Why Choose Scientech 2601 Analog to Digital Converter?

The Scientech 2601 Analog to Digital Converter provides a practical platform for learning analog-to-digital conversion techniques and understanding how analog signals are represented as digital signals. It is suitable for students and learners studying electronics, instrumentation, and digital systems.

• Practical ADC Learning: Understand the working principles of an analog to digital converter through hands-on experimentation.
• Two ADC Techniques: Study both the 4-bit staircase ramp ADC and 8-bit successive approximation ADC techniques.
• Understand ADC Circuits: Explore the operation of an analog to digital converter circuit and observe how continuously varying signals are converted into discrete signals.
• Unipolar and Bipolar Inputs: Supports experiments with both unipolar and bipolar DC voltages.
• Clear Output Indication: LED-based output status indication makes it easier to observe converter operation.
• On-Board Functional Block: The functional block representation on the board helps users understand the different stages of the conversion process.
• Built-In Power Supply: The integrated DC power supply simplifies laboratory experimentation and reduces the need for additional external equipment.
• Understand Signal Conversion: Learn the difference between an analog-to-digital converter and a digital-to-analog converter, including the basic principles of a digital to analog converter circuit.
• Useful for Electronics Education: Suitable for practical training in analog electronics, digital electronics, data conversion, and instrumentation.

Frequently Asked Questions

1. What is an analog to digital converter?

An analog to digital converter (ADC) is an electronic circuit that converts a continuously varying analog signal into a digital representation. The Scientech 2601 demonstrates practical ADC conversion techniques.

2. What techniques are demonstrated by the Scientech 2601?

The Scientech 2601 demonstrates two ADC techniques: a 4-bit staircase ramp ADC and an 8-bit successive approximation ADC.

3. What is an analog to digital converter circuit used for?

An analog to digital converter circuit is used to convert analog signals, such as varying voltage levels, into digital values that can be processed by digital electronic systems and Microcontrollers.

4. What is the difference between an analog to digital converter and a digital to analog converter?

An analog to digital converter converts analog signals into digital signals, while a digital to analog converter performs the reverse process by converting digital data into an analog signal.

5. Does the Scientech 2601 support unipolar and bipolar DC voltages?

Yes. The Scientech 2601 supports experiments with both unipolar and bipolar DC voltages, allowing learners to study ADC operation under different input conditions.
