Actuator Training Platform

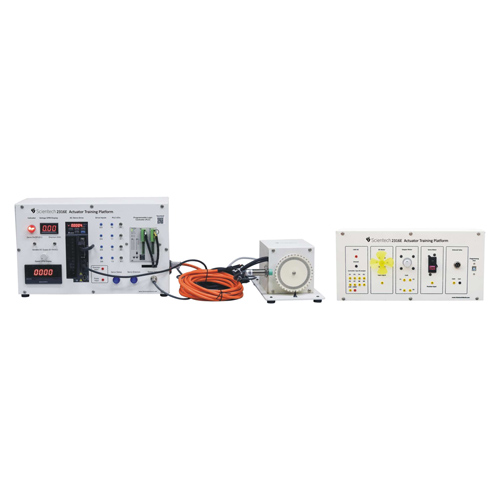

Scientech 2316E The Actuator Training Platform is a comprehensive hands-on learning system designed to provide practical knowledge of industrial actuators and control systems. It integrates AC servo motors, induction motors, stepper motors, DC motors, and a linear actuator to demonstrate various motion control techniques. The kit features a PLC-based control system with digital I/O, PWM-based servo drive control, and multiple display modules for real-time monitoring of speed and voltage. Industrial components such as contactors, relays, sensors, solenoid valves, and tower lights enhance real-world automation training. This trainer is ideal for engineering institutions and technical labs to develop practical skills in mechatronics, automation, and industrial control systems.

AC Servo Module : 1 No.
• Power : 400W
• Rated Voltage : 220V
• Rated Speed : 0 to 3000 r/min.
• Current : 1.0Ampere
• Control type : PWM control using Drive
• Encoder : 2048 / 2500 / 10000 Pulse / Rev. (Incremental, Absolute)
• Dynamic brake : Servo/Controller off Operable with the built-in alarm activated

Servo Drive System : 1 no.
• LED display :5 digit seven segment display
• Function key : 5 nos. (mode, shift , up, down , set)
• PLC : 1 no.
• Digital inputs : 4 nos.
• Digital outputs : 4 nos.
• Communication : USB

Speed DPM display : 1 no.
• Display : Single
• Display:4-digit, 0.56’’, 7-segment, red LED display
• Range : 4 to 5000 RPM
• Input : PNP switch
• Supply : 100 to 270V AC

Inductive Proximity Sensor : 1 no.
• Type : M12
• Output : PNP/NPN NO
• Sensing distance : 4 mm
Voltage DPM display : 1 no.
• Measuring range : 0-10VDC
• Variable DC Supply (0-10V) Potentiometer : 1 no.
• Measuring range : 0-10VDC
• Toggle switch : 6 nos. (One for Servo on/off , One for direction, four for PLC inputs.)
• Indicator : 2 nos. (One for servo status and one for direction)
• Power Indicator : 1 no.
